RY023
Enquiry
APPLICATION
Highway All-Position
The RY023 is available in both broadline sizes as well as 19.5" sizes for specific applications. All sizes have a five-rib tread design. The semi-rounded shoulder treatment reduces shoulder tearing and step wear, and provides lateral stability and water dispersion.

The RY023 series is designed for city and regional applications and has improved performance and traction.

FEATURES AND BENEFITS
• Sidewall abrasion guard reduces damage to sidewall caused by curbing.

• Five-rib tread design (with semi-rounded shoulder) reduces potential for shoulder ripping and tearing and lowers the cost-per-mile in abrasive applications; also provides excellent lateral stability and water dispersion, and improved performance and traction.

• Heavy-duty construction designed to meet demands of in-city and regional applications.
RY023 replaces:
Michelin XZA/XZE Goodyear G159, G647RSS Bridgestone R250

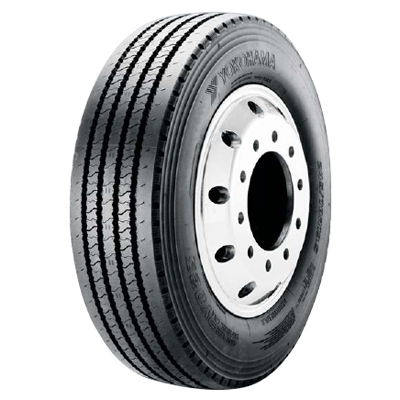

click to enlarge image
Size
    225/70R19.5
    245/70R19.5
    265/70R19.5
    285/70R19.5
    255/70R22.5
    295/75R22.5
    295/75R22.5
    11R22.5
    11R22.5
    11R22.5
    285/75R24.5
    11R24.5
    11R24.5
Part
Number
    02389
    02399
    02398
    02397
    02387
    02396
    02391
    02395
    02392
    02388
    02390
    02393
    02394
PLY
Rating
(L.R.)
    12
    14G
    14G
    16H
    16H
    14G
    16H
    14G
    16H
    16H
    14G
    14G
    16H
Tire
Weight
(LBS)
    68
    80
    87
    96
    91
    114
    115
    117
    118
    137
    117
    125
    125
RIM SIZE
MEAS
(INCH)
    6.75
    7.50
    7.50
    8.25
    7.50
    9.00
    9.00
    8.25
    8.25
    9.00
    8.25
    8.25
    8.25
ALT
(INCH)
    6.00
    6.75
    8.25
    7.5-9.0
    8.25
    8.25
    8.25
    7.50
    7.50
    8.25
    -
    7.50
    7.50
INFLATED
DIMENSIONS
OVERALL
WIDTH
(INCH)
    8.7
    9.7
    10.3
    11.1
    10.1
    11.1
    11.1
    10.8
    10.8
    11.5
    10.9
    10.7
    10.7
OVERALL
DIAMETER
(INCH)
    31.8
    33.3
    34.3
    35.1
    36.6
    40.2
    40.2
    41.4
    41.4
    42.7
    41.4
    43.4
    43.4
TREAD
DEPTH
(1/32")
    16
    16
    17
    17
    18
    19
    19
    19
    19
    20
    19
    19
    19
LOADED
DIMENSIONS
SECTION
WIDTH
(INCH)
    9.4
    10.4
    11.1
    12.1
    10.7
    12.1
    12.1
    12.0
    12.0
    12.8
    11.8
    11.9
    11.9
STATIC
RADIUS
(INCH)
    14.8
    15.5
    15.8
    16.3
    17.1
    18.7
    18.7
    19.3
    19.3
    19.8
    19.2
    20.0
    20.0
RPM
    652
    628
    612
    597
    570
    520
    520
    504
    504
    490
    503
    483
    483
MAX LOAD CAPACITY AT COLD
INFLATION PRESSURE
LB/PSI
SINGLE
    3640@95
    4540@110
    5070@110
    6395@120
    5510@120
    6175@110
    6610@120
    6175@105
    6610@120
    7390@120
    6175@110
    6610@105
    7160@120
LB/PSI
DUAL
    3415@95
    4300@110
    4675@110
    6005@120
    5070@120
    5675@100
    6005@120
    5840@105
    6005@120
    6780@120
    5675@100
    6005@105
    6610@120
KG/KPA
SINGLE
    1650@660
    2060@760
    2300@760
    2900@830
    2500@830
    2800@760
    3000@830
    2800@720
    3000@830
    3350@830
    2800@760
    3000@720
    3250@830
KG/KPA
DUAL
    1550@660
    1950@760
    2120@760
    2725@830
    2300@830
    2575@760
    2725@830
    2650@720
    2725@830
    3075@830
    2575@760
    2725@720
    3000@830
MAX
SPEED
    75MPH
    75MPH
    75MPH
    75MPH
    75MPH
    75MPH
    75MPH
    75MPH
    75MPH
    75MPH
    75MPH
    75MPH
    75MPH
